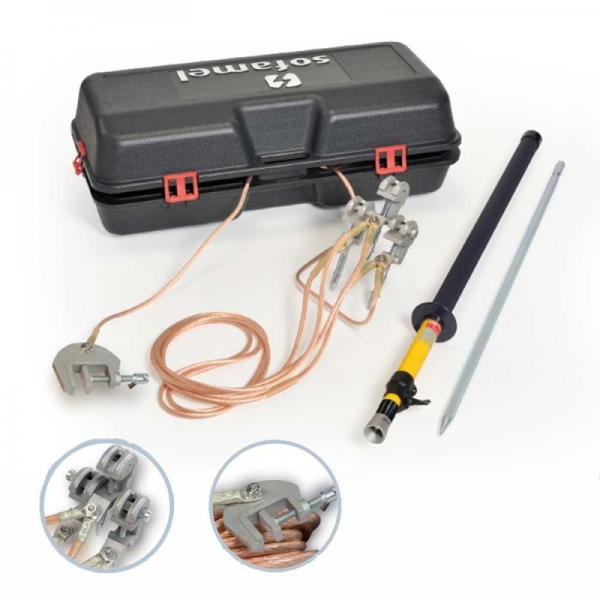

Sofamel PATL-MPLB/7070

Earthing and short-circuit equipment - Medium voltage overhead lines

1)  2 MPU aluminium alloy clamps with screw tighten for cylindrical conductors with diameter between between 5 and 45 mm, flat bars max. 45 mm, bending bus-bars max. 45 mm and fixing points, between 20 and 25 mm.

2)  1 MPLP aluminium alloy clamp (carrier) with screw tighten for cylindrical conductors with diameter between 5 and 45 mm, flat bars max. 45 mm, depending on model, vending bus-bars max. 45 mm and fixing points between 20 and 25 mm.

3)  2 copper cables with PVC insulation of 70 mm 2 section and 2,5 m long.

4)  1 copper cable with PVC insulation of 70 mm2 section and 15 m long.

5)  1 TT-50 milling earthing lathe.

6)  1 earthing rod.

7)  1 telescopic pole (1,15 m folded and 2 m extended).

8)  1 plastic case to store and transport the equipment.

9)  1 bag to store and transport the pole and the earthing rod.
